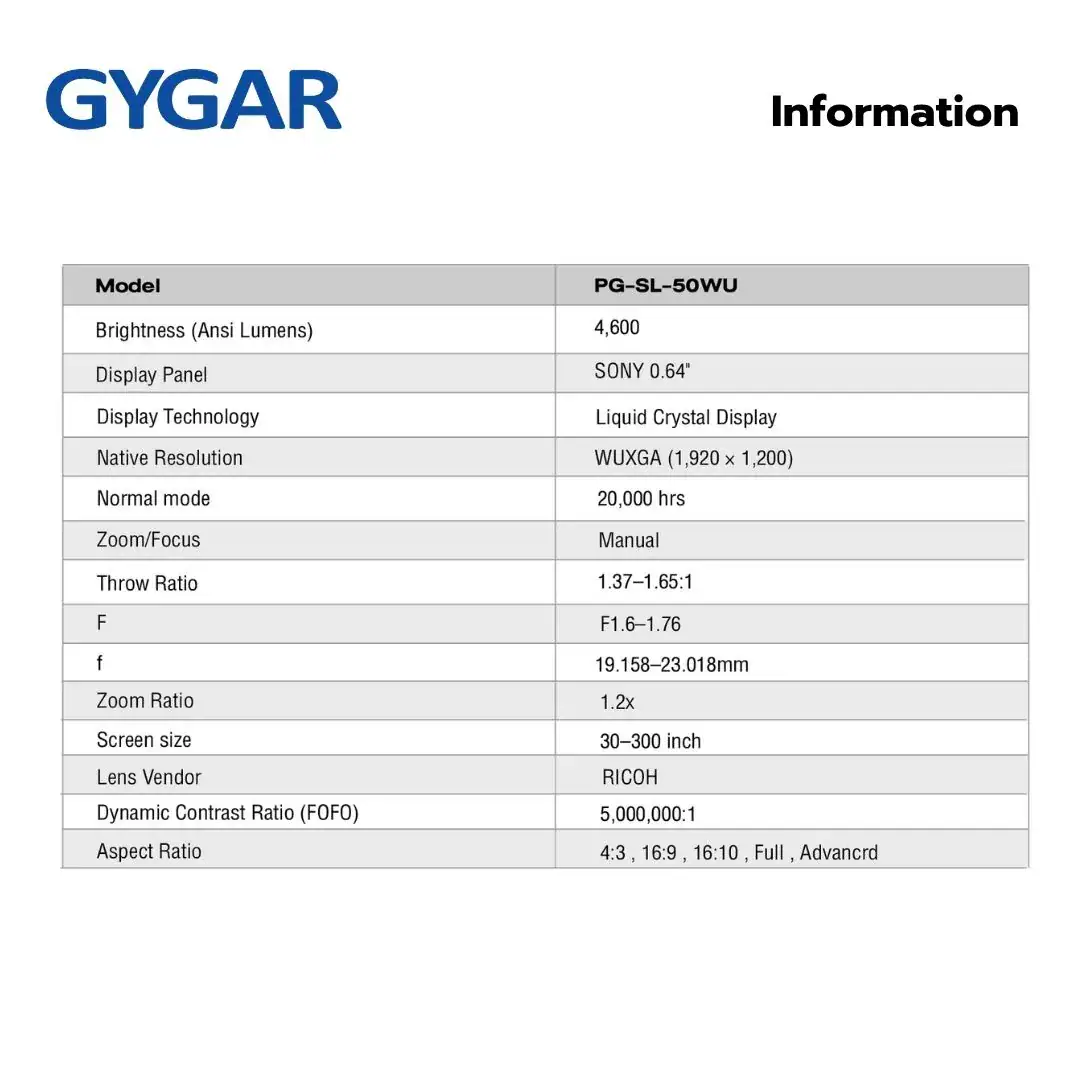

| Lumens |
4600 |
| Display panel |
SONY 0.64″ |
| Display Technology |
Liquid Crystal Display |
| Resolution (Native) |
WUXGA (1,920×1,200) |
| Lifetime |
20,000 hrs |
| Zoom/Focus |
Manual |
| Throw Ratio |
1.37~1.65:1 |
| Size (F/f) |
F1.6~1.76 / 19.158~23.018mm |
| Zoom ratio |
1.2x |
| Image Size |
30″ ~ 300″ |
| Dynamic Contrast Ratio (FOFO) |
5,000,000:1 |
| Dust filter |
350:1(Min) |
| Noise (dB) |
37dB(Normal), 30dB(ECO1), 28dB(ECO2) |
| Uniformity (Actual Min) |
80% |
| Aspect Ratio |
4:3, 16:9, 16:10, Full, Advanced |

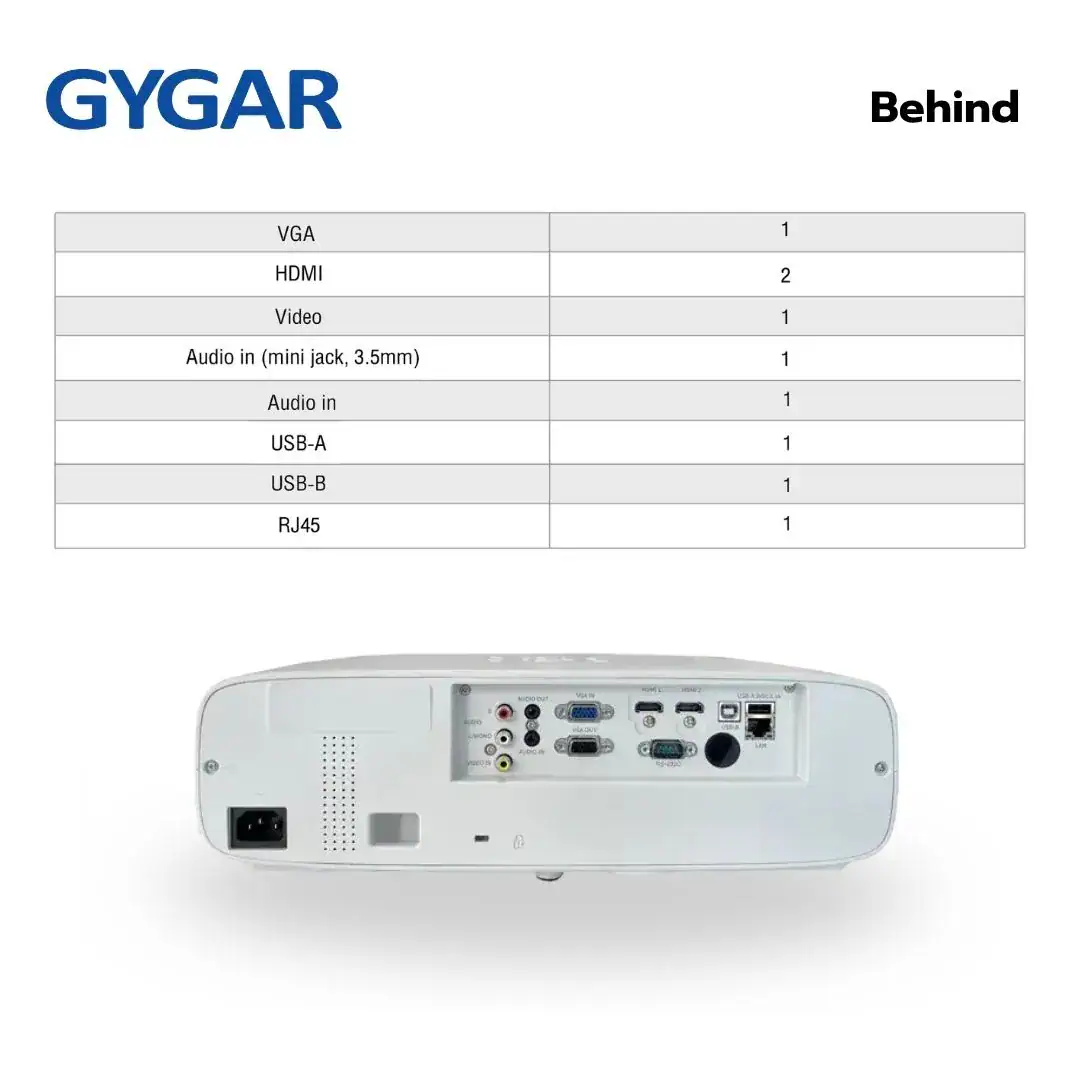

| Input |
|
| VGA |
1 |
| HDMI |
2 |
| Video |
1 |
| Audio in (mini jack,3.5mm) |
1 |
| Audio in |
1 |
| USB-A |
1 |
| USB-B |
1 |
| RJ45 |
1 |
| Output |
|
| VGA |
1 |
| Audio out (mini-jack,3.5mm) |
1 |
| RS232 |
1 |
| RJ45 |
1 (Control) |
| Speaker |
16Wx1 |
| Dust filter |
W/Filter |
| Filter Life time |
7000h |
| Power Requeirements |
100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
280 |
| Power Consumption (ECO1) (Max) |
190 |
| Power Consumption (ECO2) (Max) |
170 |
| ECO Standby Mode Power Consumption |
0.5W |
| Operating Temp. |
0 to 40deg.C |
| Operating Thumidity. |
20-80% |
| Store Temp. |
-10 to 50deg.C |
| High altit |
0-3000m |
| Storage Thumidity.ude |
10-85% |
| Keystone Correction |
V: ±30° |
| Keystone Correction (Lens@center) |
H: ±30° |
| LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery |
Yes |
| LAN Control-PJ Link |
Yes |
| WiFi |
Yes |
| H-Synch Rang |
15~100KHz |
| V-Synch Rangee |
24~85Hz |
| Computer Signal Input |
VGA, SVGA, XGA,SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input |
480i, 480p, 576i, 576p, 720p, 1080i and 1080p |

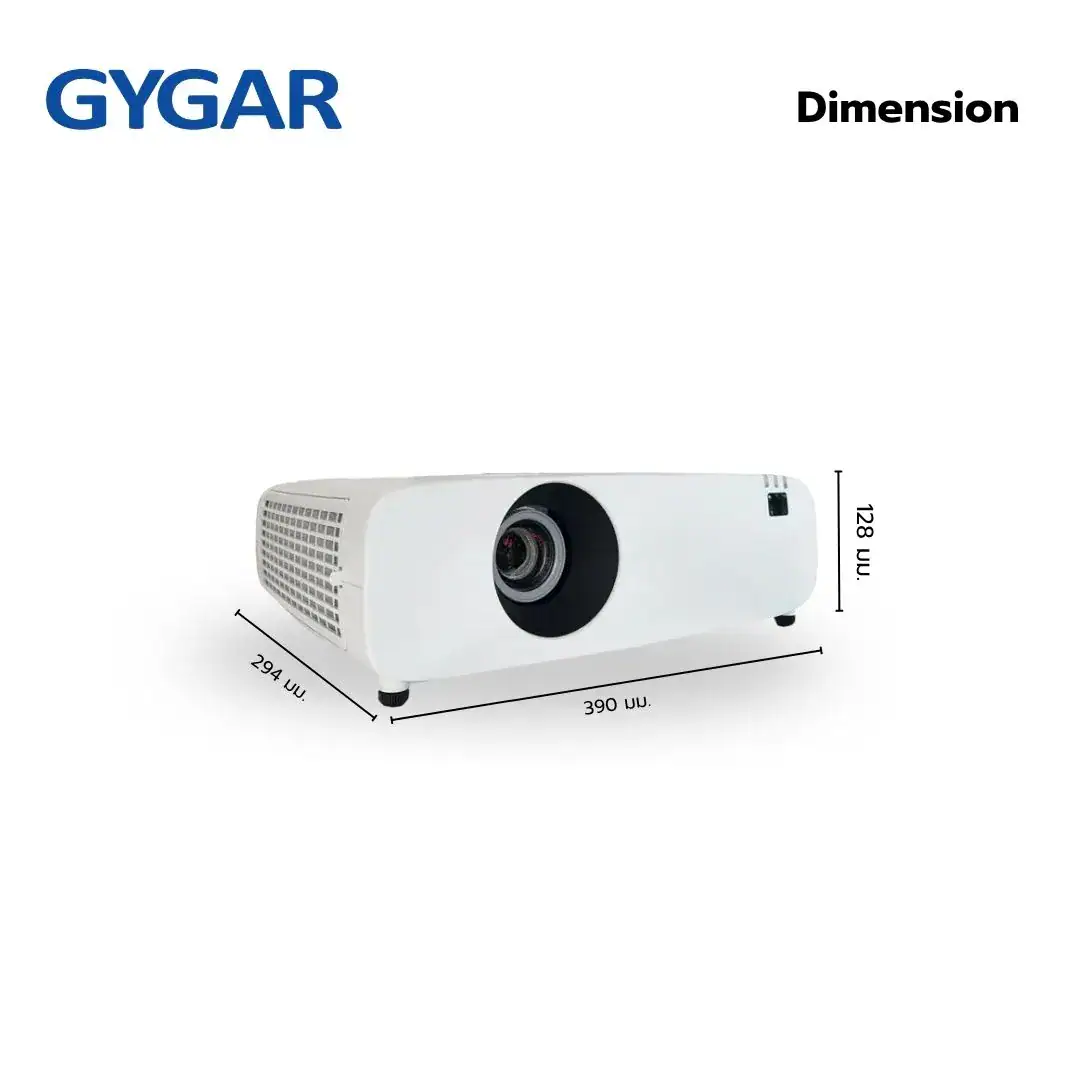

| MAX Dimensions (WxDxH mm) |
390x294x128 |
| Net. Weight (KG) |
5 KG. |
| Packaging Box Dimensions (WxDxH mm) |
492x443x239 |
| Gross. Weight (KG) |
~6.5KG. |
| Manual Languages |
Chinese, English |
| Standard Accessaries |
Power cord Remote control&RC Battery |
