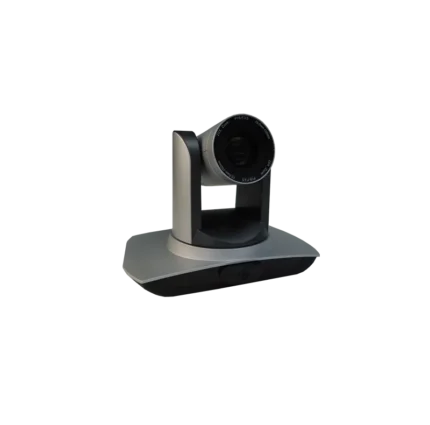

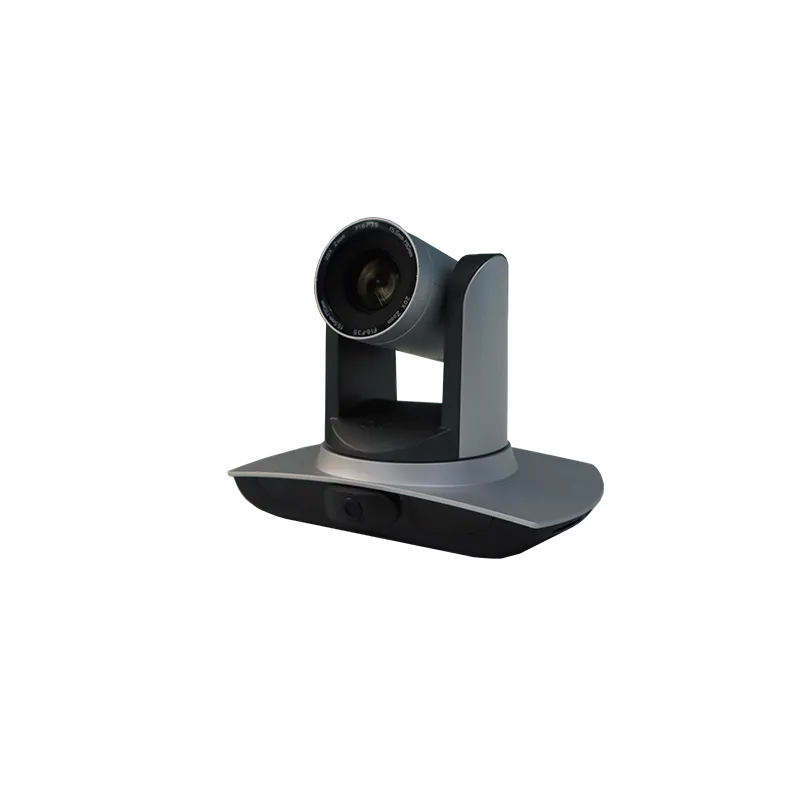

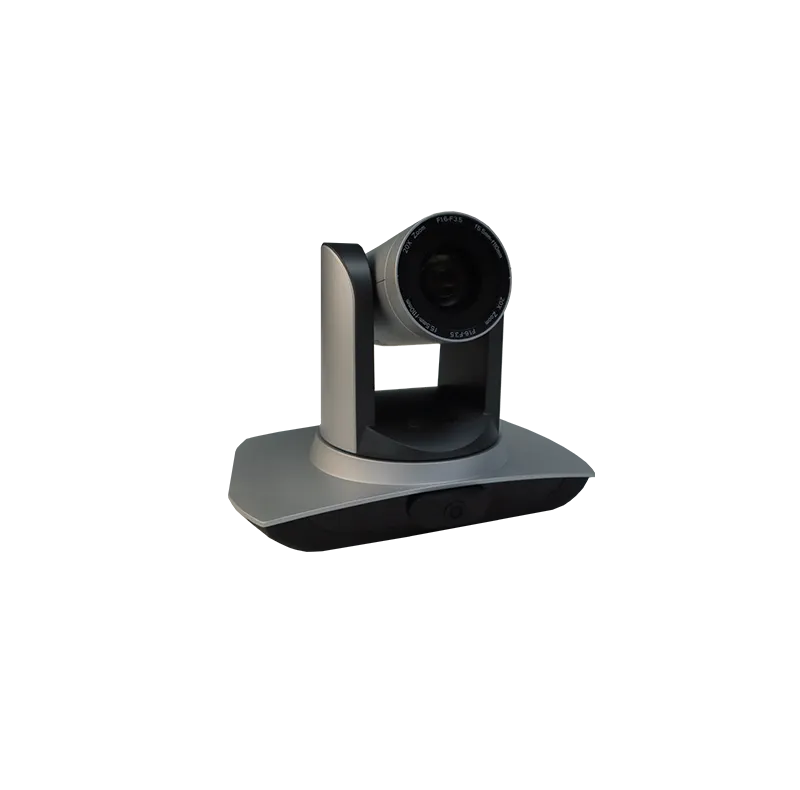

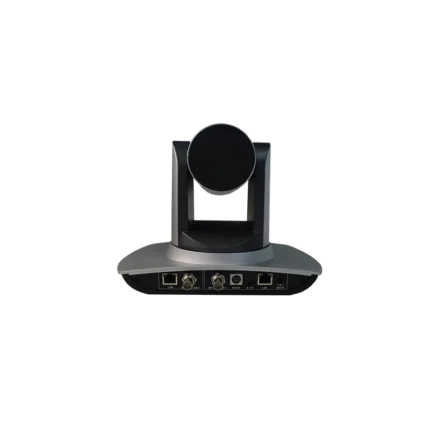

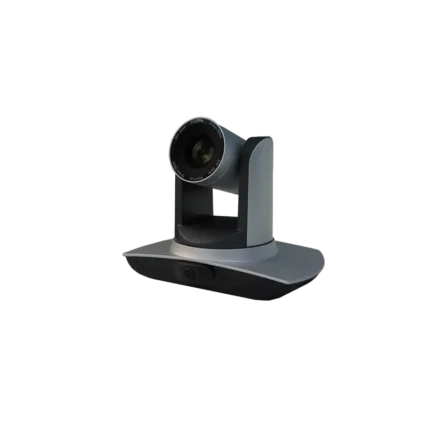

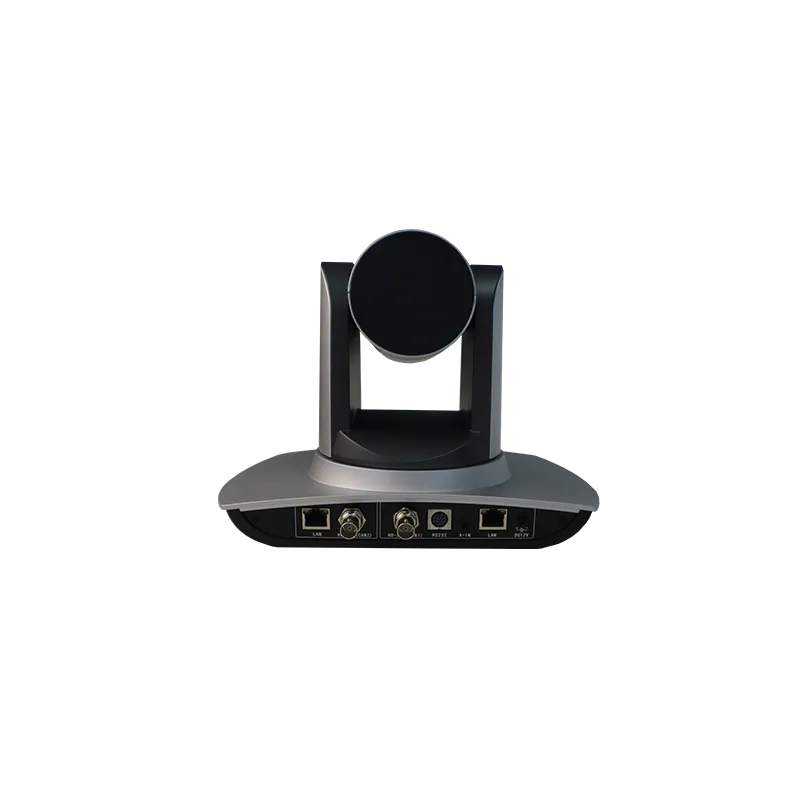

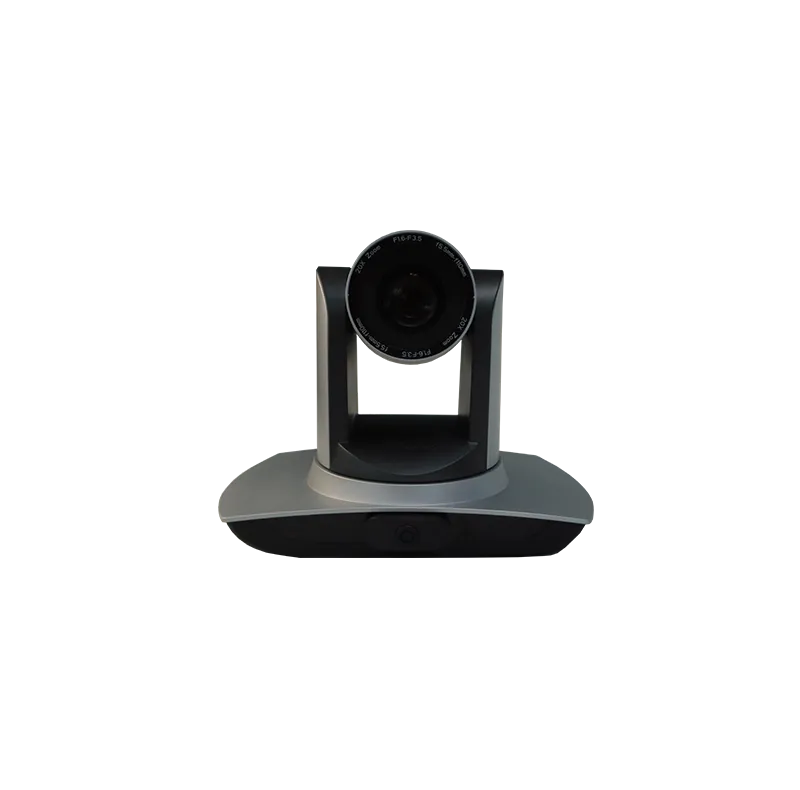

กล้อง Auto Tracking SS-TS-UV100T
฿22,470
รับประกัน 1 ปี
-
ภายใน 7 วันไม่พอใจ ยินดีคืนเงิน
คำอธิบาย
Features
ㆍSuperb High-definition Image
UV100T employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60 fps.
ㆍLeading Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
ㆍLow Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is used to further reduce the noise, while
ensuring image sharpness.
ㆍWide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, UV100T camera works extremely quiet and moves smoothly without any noises.
ข้อมูลเพิ่มเติม
| Tracking Camera and Lens Parameter | Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels | 2.07 megapixel; 16:9 | |
| Video Signals | 1080P60/50/30/25/59.94/29.97 ,1080I60/50/59.94,720P60/50/30/25 / 59.94 /2 9.97 |
|
| Optical Zoom | 20x optical zoom f＝4.7～94mm | |
| View Angle | 2.9°(tele)～55.4°(wide) | |
| Iris | F1.6 ～ F3.5 | |
| Digital Zoom | X10 | |
| Minimum Illumination | 0.1Lux(F1.8, AGC ON) | |
| Digital Noise Reduction | 2D﹠3D digital noise reduction | |
| White Balance | Manual/ Auto/ One Push / 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
|
| Focus | Auto/Manual/One Push | |
| Aperture | Auto/Manual | |
| Electronic Shutter | Auto/Manual | |
| BLC | ON/OFF | |
| WDR | OFF/Dynamic Range adjustment |
|
| Video | Brightness,Color,Saturation,Contrast,Sharpness,Gamma curve | |
| SNR | >55dB | |
| Panoramic Camera | Sensor | 1/3 inch high quality HD CMOS sensor |
| Effective | Pixels 2.1 megapixel | |
| Lens | Manual Focus | |
| 4mm Lens View Angle(D/H/V) |
89.6°/71°/52.2° | |
| 6mm Lens View Angle(D/H/V) |
67.0°/59°/32.5° | |
| Input/Output Interface and Protocols | ||
| Video Interface | SDI, LAN / USB3.0, HDMI, LAN |
|
| Network Interface | 100M network interface (10/100BASE-TX) 5G WiFi(optional), Support VISCA protocol control through IP port |
|
| Network Protocol | RTSP,RTMP,ONVIF,GB/T281 81 |
|
| Compress Image Code Stream |
Dual stream output | |
| Video Compress Format | H.264,H.265 | |
| Control Signal Interface | RS-232 Input | |
| Control Protocol | VISCA/Pelco-D/Pelco-P Baud Rate:115200/9600/4800/2400bps | |
| Audio Input Interface | Dual audio channel 3.5mm linear input | |
| Audio Compress Format | AAC,MP3,PCM | |
| Power Interface | HEC3800 power jacket(DC12V) | |
| Pan Tilt Parameter | Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+90° | |
| Pan Control Speed | 0.1 ～100°/s | |
| Tilt Control Speed | 0.1～45°/s | |
| Preset Speed | Pan100°/s,Tilt:45°/s | |
| Preset Number | User can set up to 255 presets(remoter 10 presets) | |
| Other Parameters | Supply Adapter | Input AC110V-AC220V to DC12V/2.5A |
| Input Voltage | Output DC12V±10% POE power supply optional | |
| Input Current | 1.5A(Max.) | |
| Consumption | 18W(Max.) | |
| Store Temperature | -10℃～+60℃ | |
| Store Humidity | 20%～95% | |
| Working Temperature | -10℃～+50℃ | |
| Working Humidity | 20%～80% | |
| Dimension(WxHxW) | 254mmX144mmX174mm | |
| Weight(appr.) | 1.54kg | |
| Application | Indoor | |
| Remote Maintenance (LAN) | Remote Update,Remote Reboot,Remote Reset | |
| Accessory | 12V/2.5A power supply adapter,RS232 control cable, Remote Controller, user manual |
